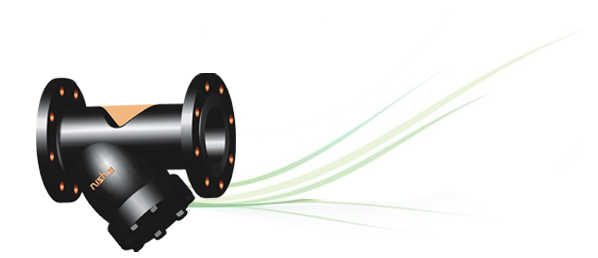

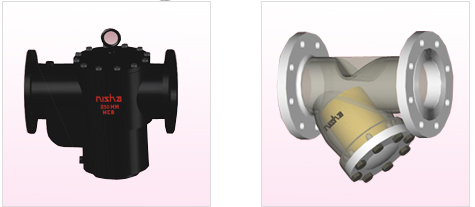

STRAINER

Salient Feature

• Pipe Line Strainers Design code Mfg. Std. (NVIL).
• Free Flow Area Minimum Three times across Sectional area of Inlet Pipe.
• Fine Finish & Smooth Contours to reduce the Pressure drop in Strainer.
• Bolted Body With Cover.
• Removable filtering Screen elements.
• Drain Plug is provided in Larger Size to Drain the Foreign particles accumulated in the strainer.
• Face to Face Dimensions As per NVIL.
• Flanged Ends Dimensions Confirms to ANSI B 16.5/ ANSI B 16.1 / BS 10 - Table-"D" & "F" / PN-16 / PN-40 / JIS / IS.
• Screwed Ends to BSP / BSPT / NPT.
• Socket Weld Ends to ANSI B 16.11.

Option

• Wire mesh liners.
• Optima element materials.
• ANSI 125# can be given at specific request of the user.
• On request with Drain plug.
• On request with discharge valves.
• Lifting Hook Arrangement.
• On Request With Vent Design.
• Fabricated Strainers available on Request.

SIZE : 1" (25MM) to 36" (900MM).

CLASS :- 125# / 150# / 300# / 600# / PN-40 / PN-16 / Table - "E" & "F".
