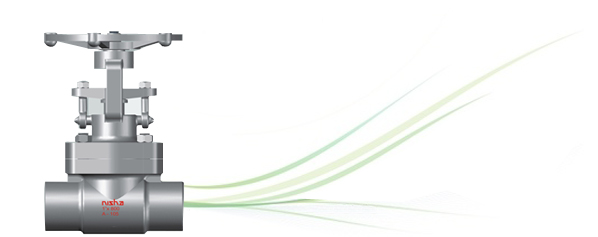

FORGED VALVE

Salient Feature

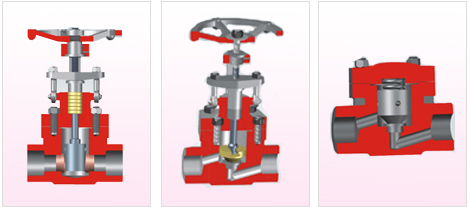

• Outside Screw and Yoke type Bolted Bonnet Design For Up to Class 800.
• Screwed With Seal-Welded Body-Bonnet Design For Valves Class 1500#, 2500#.
• Meet design as per manufacture standards.
• Gate valves B.S. 5352 / API 602, Globe & Lift Check Valve as per B.S. 5352.
• Testing As per API 598 / B.S. 6755.
• Rating: 800#, 1500#, 2500#.
• Cryogenic Gate / Globe As Per BS 6364
• M.O.C:- Available drop in ASTM A105, ASTM A182 Gr.F-11, ASTM A 182 Gr.F-22, ASTM A350 Gr. LF-2,
• ASTM A 182 Gr. 304/ F 304L/ F 316 /F 316L/ NACE MR-0175
• Other Alloy Materials on Request.
• Extended Gland Provided for Low Temperature and Cryogenic services. (Cold Box & Non Cold Box Applications) to conform to
• Requirement of B.S. 6364.
• Specially designed Die Formed Graphite Packing, Controlled Clearances between Stem, Gland and Back Seat for Guaranteed Low
• Emissions meet 100 PPM maximum Fugitive Emission levels.
• Easy Access to Stuffing-box.
• Back Seating Surface Provided Integral to Bonnet.
• Screwed Ends As per ASME B.S. 20.1 /ASME B.S. 21 / I.S. 554 / 554T
• Socket Ends As Per ASME B 16.11 / I.S. 4712
• Butt weld Ends As Per ANSI B 16.25.
• Pressure & Temperature Rating as Per ASME B 16.34/ API 602.
• Assembly with I-Bolt Tightening.
