Gate Valves
Outside screw and yoke, solid, flexible and parallel-slide wedges.
Size range
15–400 NB
Pressure class
150#–2500#
End connections
Flange End · Butt Welded
Built for the job
Outside screw & yoke construction with back-seating arrangement for in-line maintenance.
Solid, flexible, split-wedge and parallel-slide discs available to suit the service.
Die-formed graphite packing holds fugitive emissions to 100 PPM maximum.
Anti-friction ball thrust bearing in the yoke sleeve on larger sizes and higher classes.
Extended bonnet option for cryogenic and low-temperature service to BS 6364.
Gear box, chain wheel, electric or pneumatic actuation available.
Specification matrix
Technical drawings

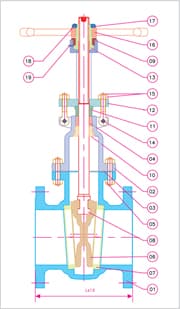

Class 150# — cutaway with part callouts

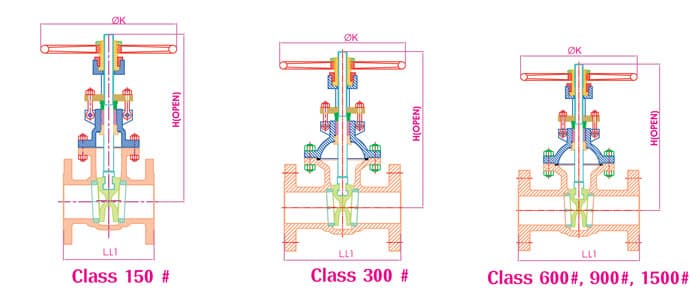

Class 150# / 300# / 600#-1500# — body comparison

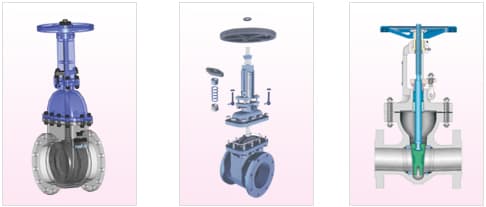

Available configurations
