Forged Valves
A105, F11, F22, F304/316 — screwed end, socket welded, flange end.
Size range
6–50 NB (¼"–2")
Pressure class
800#–2500#
End connections
Screwed End · Socket Welded · Butt Welded
Built for the job
Outside screw & yoke bolted bonnet up to Class 800#; screwed, seal-welded body-bonnet for 1500#/2500#.
Body and trim available in A105, F11, F22, F304/F304L, F316/F316L and NACE MR-0175 on request.
Screwed End, Socket Welded and Butt Welded end connections to ASME / IS standards.
Back-seating surface integral to the bonnet for easy stuffing-box access.
Extended gland for low-temperature and cryogenic service to BS 6364.
Electrical or pneumatic actuation available on gate and globe patterns.
Specification matrix
Technical drawings

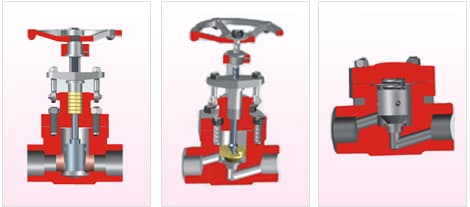

Forged gate, globe & check — body range
